Is Smart Device : YES

Condition : New

CNC or Not : CNC

Brand Name : lxshow

Origin : Mainland China

Applicable material : cs;ss;cooper;aluminum

Brand : LXSHOW

Warranty : 3 years

About the machine, shipping by sea, please contact me before placing an order, we will provide you with more details about shipping and discount

.

if you are interested,pls contact with Daisy Phone/WhatsApp/Wechat: +86

Email: Export49@lxshow.net

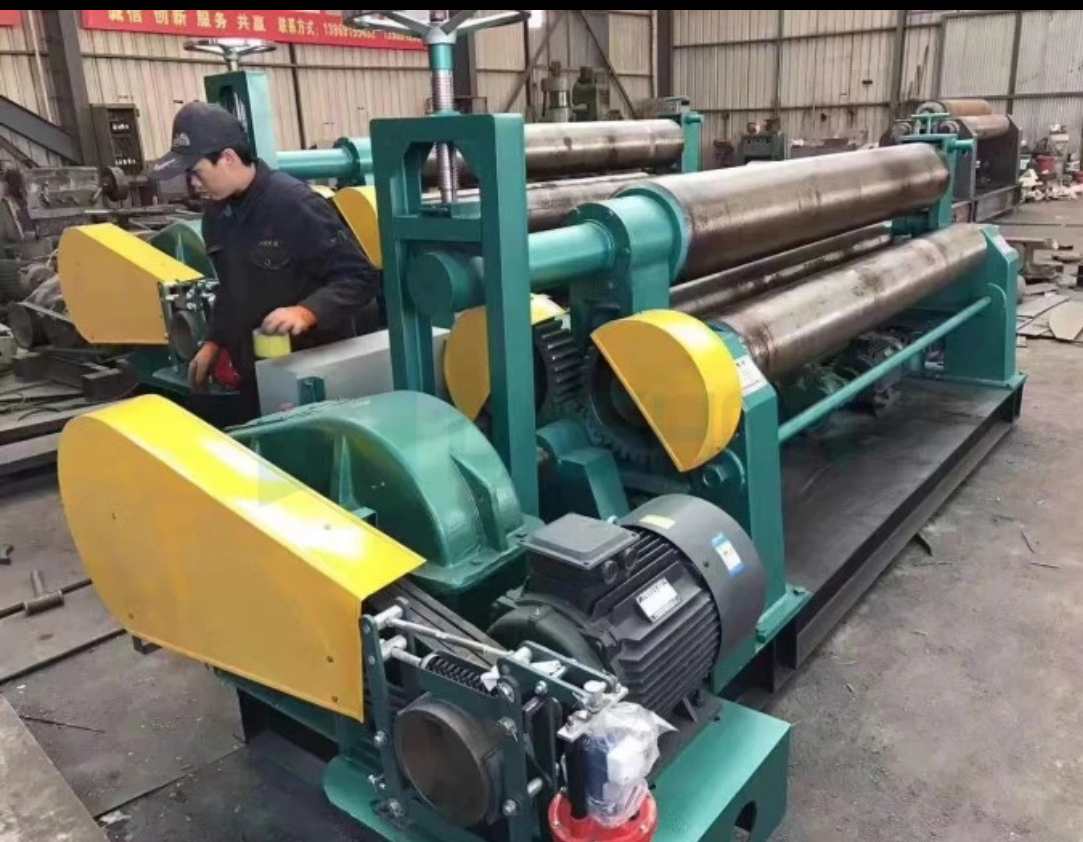

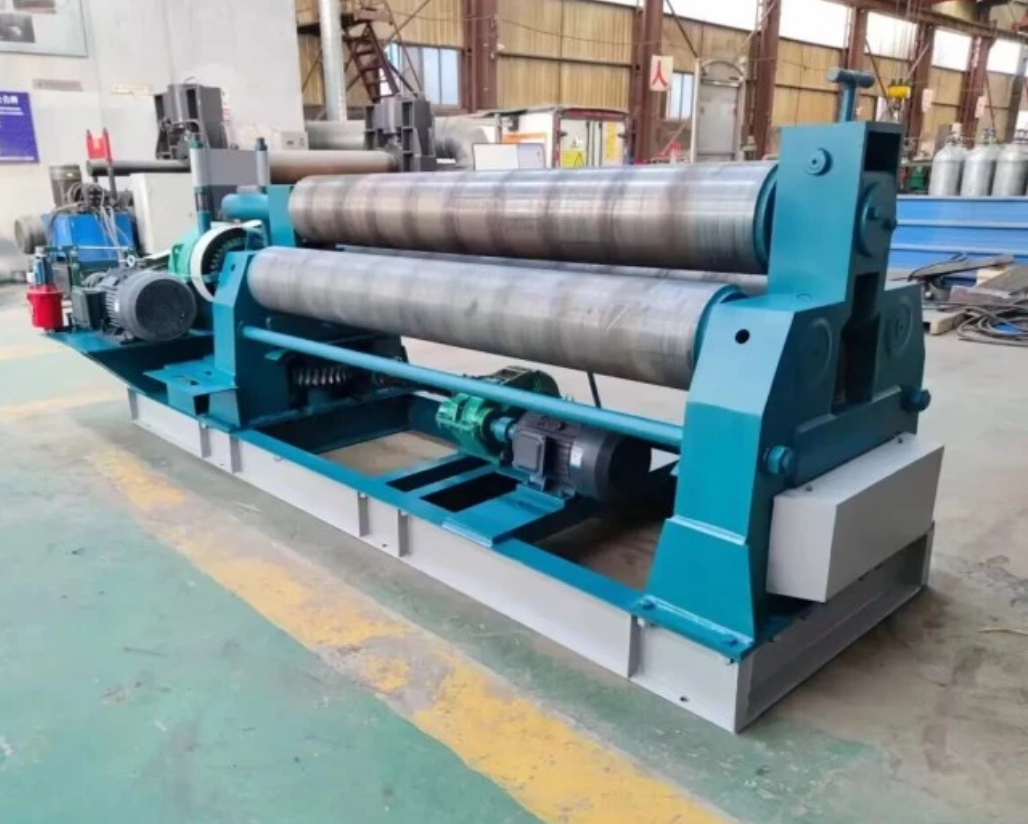

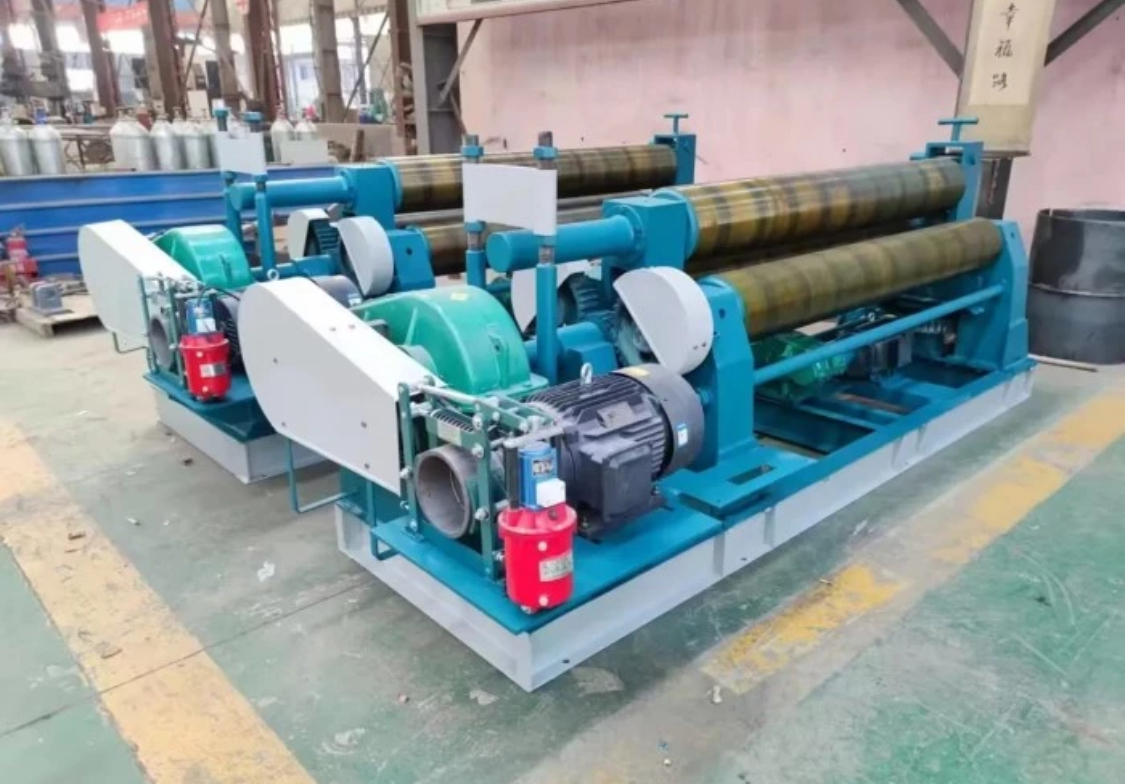

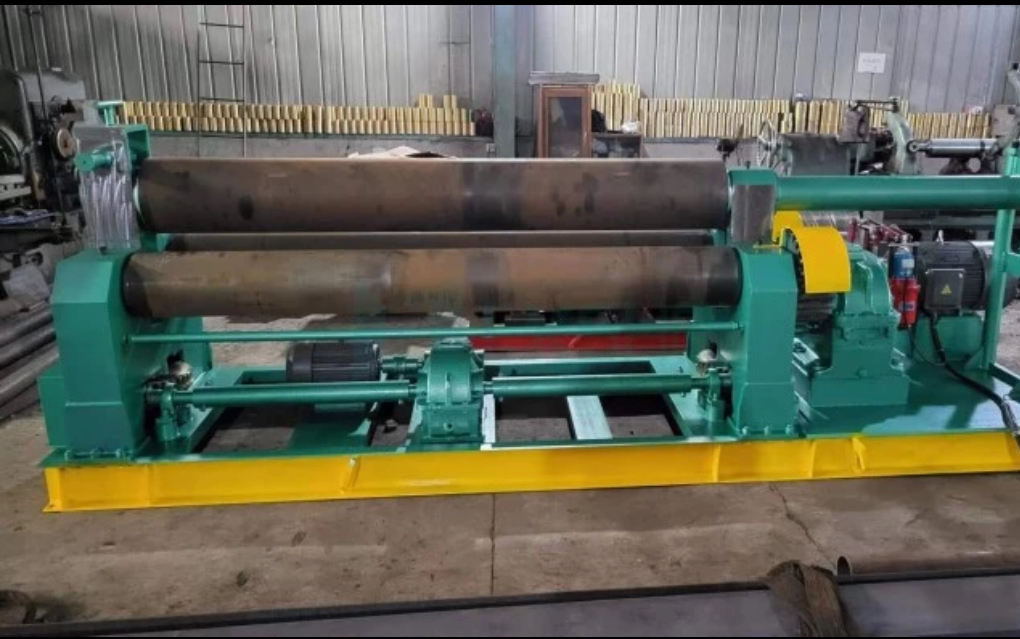

Three-roller  cnc plate rolling machine sheet metal roller

Details

Model Number

W11SNC-202500

Pressure on upper roller

130T

Maximum width

2500mm

Roller working length

2550mm

Plate Yield Limit

s245Mpa

Upper roll diameter

320 mm

Bottom roll diameter

200mm

Drive speed

4m/min

Symmetrical rolling

T20B2500min800

Asymmetrical rolling

T16B2500min80

Drive motor

18.5kw

Hydraulic motor

2.5kw

Horizontal movement motor power

2.2 kw

Dimensions

4.71.91.9(m)

Weight

8.5T

OPTIONAL PARTS

Solid work roll 45# steel

The up and down roll movement of the work roll completes the coiling action.

Screw

 The screw height adjustment mechanism is a mechanism that can adjust the height through a screw.

 The mechanism is composed of a screw and a nut. By rotating the screw, the nut is driven to move up and down, so as to realize the height adjustment of the working surface such as the workbench.

Electrical components

 Electrical components are famous Siemens brands, which is popular in market.

 Stable work ability.

Main motor

Easy installation, easy adjustment, excellent performance, complete solutions.

Cnc plate rolling machine hydraulic system

 Ensure that there is no leakage point in static or dynamic work, and achieve stable dynamic operation without shock, crawl.

 It is required that the valve group has large flow rate, small resistance, small pressure loss and low heat generation.

Samples
